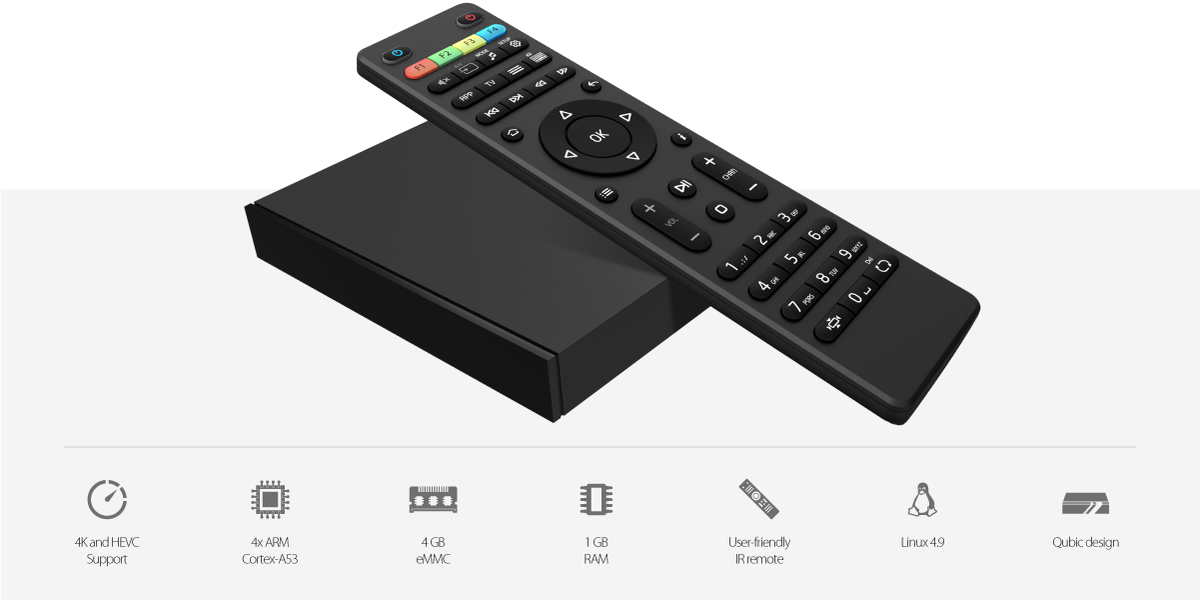

MAG520: a 4K-capable high-performance Linux set-top box with 8-channel audio
With the Amlogic S905X2 chipset at its heart, MAG520 gives 25% better performance than previous-generation MAG devices and can run for many months without rebooting. With MAG520 you get smooth playback of high-resolution content and features all kinds of connectivity for external devices.

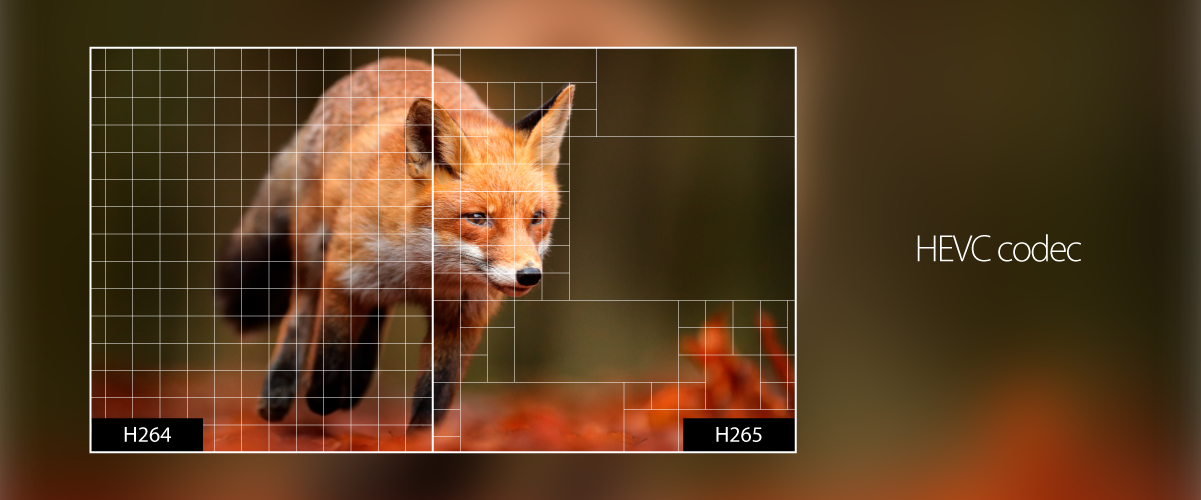

4K, HEVC, and HDR
The device supports high-contrast HDR video, the HEVC codec, and 4K video resolution, enabling users to enjoy high-res video content in vibrant colors. The outstanding detail and natural color rendering immerse viewers right in the center of the action.
8-channel audioTM sound
The set-top box is compatible with modern audio systems and supports Dolby Digital Plus™ technology that enables cinema-like surround sound. Position your speakers at the sides of the room and enjoy immersive stereo sound, enhancing your movie, TV show, or concert viewing experience.
2 USB ports
MAG520 has two USB ports for keyboards, mice, controllers, memory cards, and external storage. The USB 2.0 port works best with peripherals like keyboards and mice. The USB 3.0 port offers higher data rates, making it perfect for external storage.
Qubic design
The set-top box case is made of black matte plastic and features a Qubic design. MAG520 is so compact and ergonomic that you can put it anywhere you want. It looks stylish in any interior.
Dimensions
Width/depth/height, (mm)
120x78x21
Weight, g
110
Hardware
Chipset
Amlogic S905X2
Processor
Quad-core ARM Cortex-A53, 1,900 MHz
Performance
18 400 DMIPS
RAM
1 GB DDR3
Flash memory
4 GB eMMC
Software
Operating system
Linux 4.9
Middleware supported
Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
Interfaces
HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs
MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio formats
AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes
PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Video сodecs
MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
