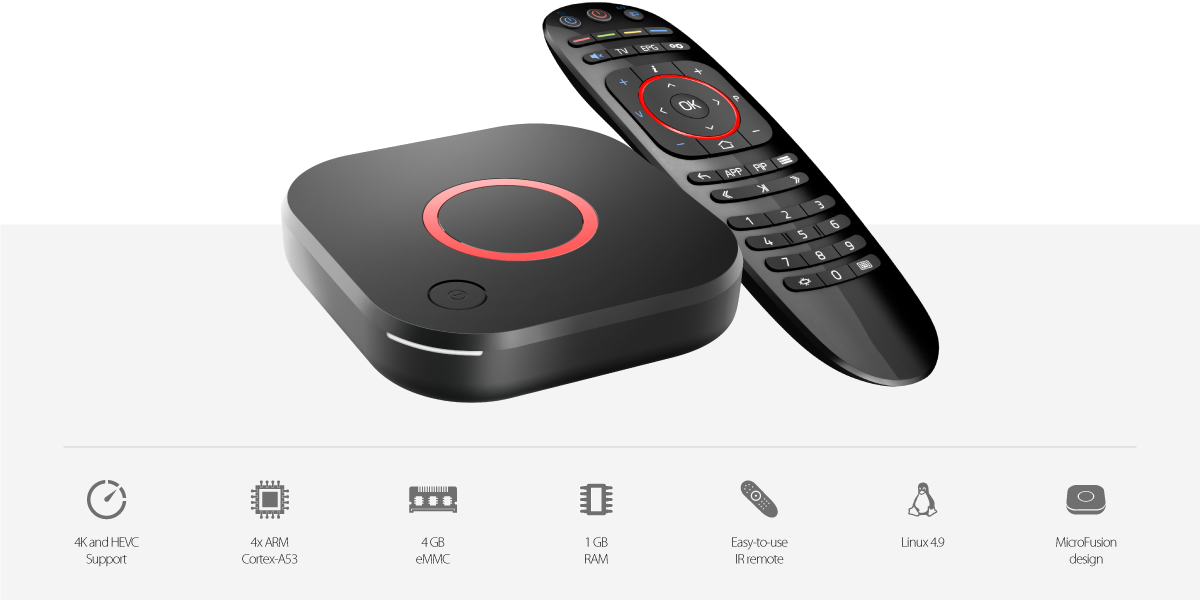

The fifth series MAG set-top boxes are powered by the Amlogic S905X2 chipset. This makes them 25% more powerful than the previous generation, and the MAG524 can operate for several months without rebooting. The set-top box offers an Ethernet connection at a speed of 100 Mbps, ensuring reliable, smooth playback.
4K and 60 fps
The device plays the most widespread content formats up to and including 4K and supports 60 fps. So, if your TV is capable of playing high-definition video, MAG524 enables you to watch crystal clear, highly detailed 4K movies.

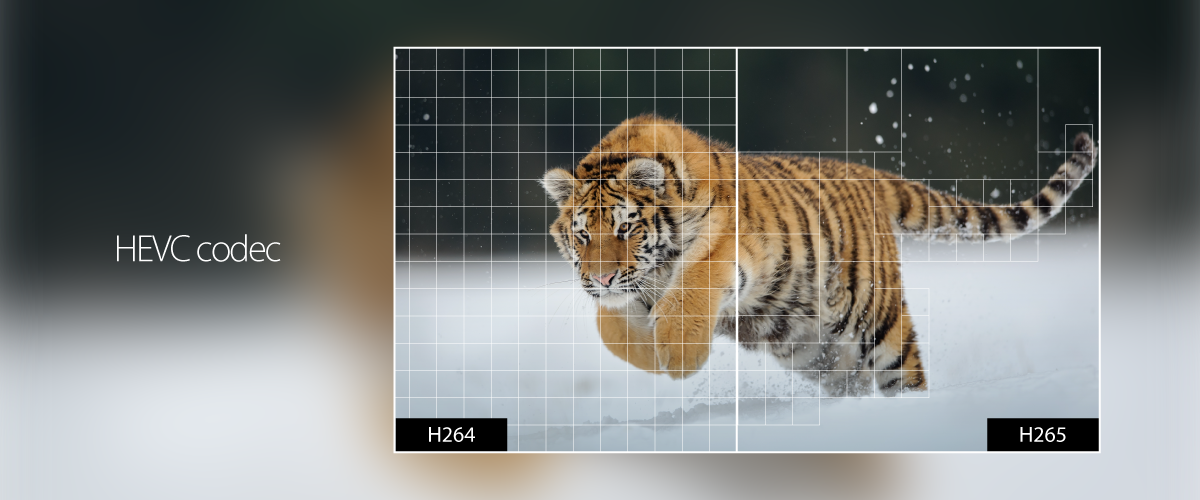

HEVС and HDR support
The MAG524 set-top box supports the H.265 codec, allowing users to watch high-definition videos even at slow Internet speeds. Thanks to the High Dynamic Range (HDR) mode, the image offers rich contrasting colors, while viewers enjoy dark and light scenes without distortion — just like in reality.
Dolby Digital PlusTM surround sound
If your TV is equipped with Dolby Digital PlusTM eight-channel audio technology, you can enjoy powerful cinema-like surround sound at home. Dolby Digital Plus enables you to distribute and hear the sound from different angles — just like in real life. This technology gives you a fully immersive experience.
USB ports for peripherals
MAG524 offers two USB ports: a USB 2.0 port suitable for connecting a mouse or keyboard, and a USB 3.0 port which has a higher data transfer rate, perfect for connecting external media.
Dimensions
Width/depth/height, (mm)
115x115x28
Weight, g
170
Hardware
Chipset
Amlogic S905X2
Processor
Quad-core ARM Cortex-A53, 1,900 MHz
Performance
18 400 DMIPS
RAM
1 GB DDR3
Flash memory
4 GB eMMC
Software
Operating system
Linux 4.9
Middleware supported
Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
Interfaces
HDMI 2.1-output, Ethernet 100 MBPS, USB2.0х2, USB 3.0X1
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio codecs
MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video modes
2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video сodecs
H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
