Units will be shipped with regionally adapted power supplies.
No subscriptions, TV channels or any other video/audio content will be provided with purchasing of the unit.
Not for resale.

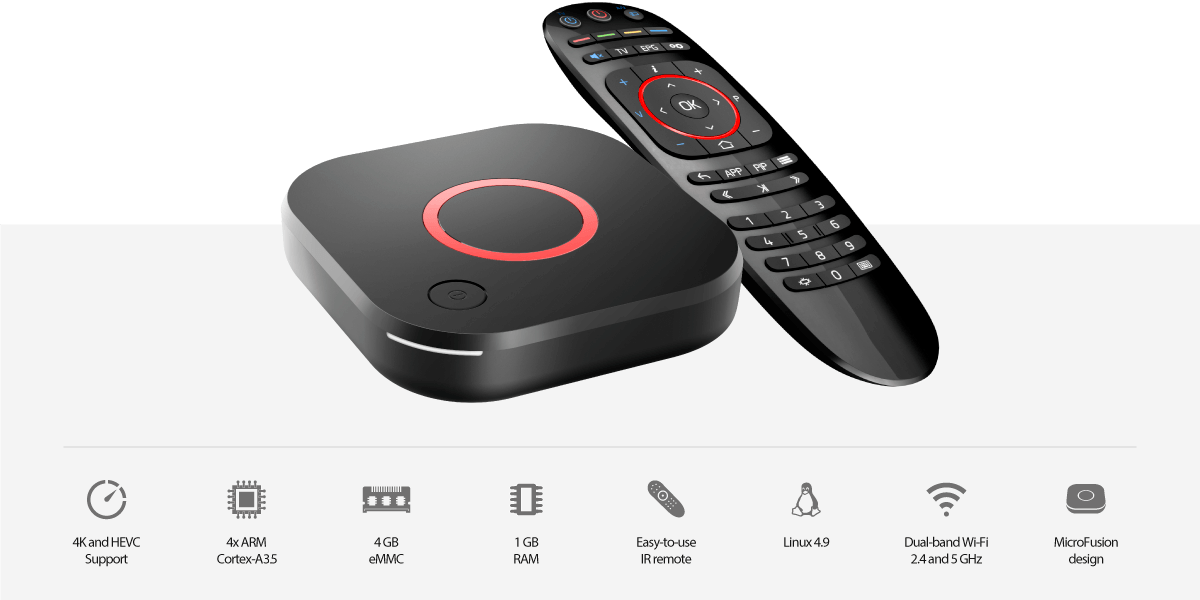

MAG540w3: a high-performance Linux set-top box with Wi-Fi
The new MAG media players are powered by the Amlogic S905Y4 chipset. MAG540w3 is equipped with a quad-core ARM Cortex-A35 CPU running at 2,000 MHz that guarantees months of uninterrupted operation.
Realistic picture
With MAG540w3, viewers can enjoy 4K HDR video in its full glory with high-definition pictures packed with detail, high contrast, and vivid colors.
Built-in HEVC codec
With the built-in HEVC codec, the set-top box easily handles demanding 4K video even at bandwidths as low as 5 Mbps.
Ethernet and Wi-Fi connectivity
MAG540w3 supports both wired internet connections via Ethernet, and wireless over Wi-Fi. For wired connections, the data rate reaches 100 Mbps. The built-in dual-band Wi-Fi module (2.4 GHz and 5 GHz) ramps up the transfer speed to 550 Mbps.
Dolby Digital PlusTM surround sound
The MAG540w3 media player is compatible with modern audio systems and supports 8-channel Dolby Digital Plus™ sound, totally immersing viewers into movies, TV shows, concerts, and sporting events.

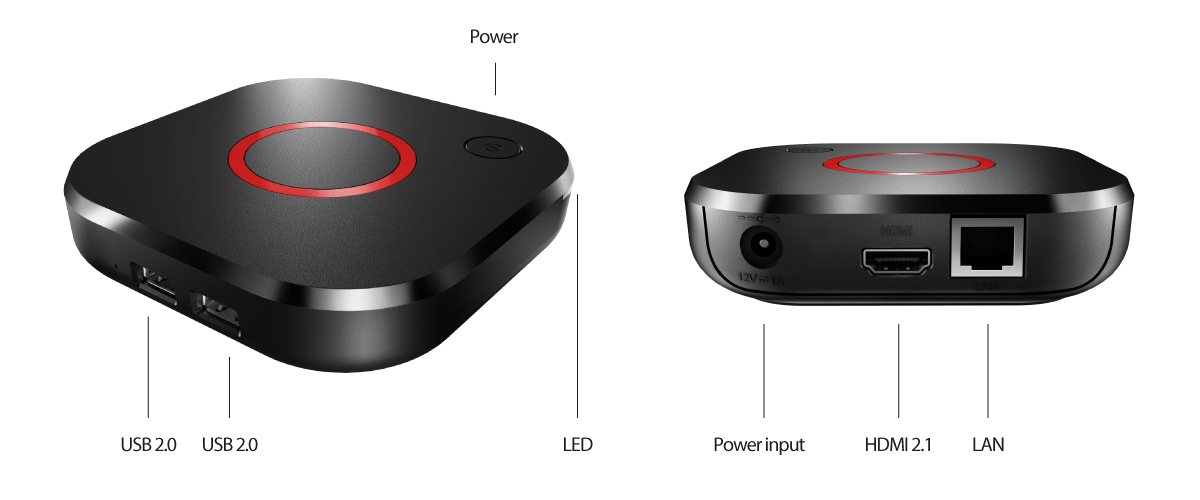

USB ports for peripherals and storage
The set-top box has two USB ports. The USB 2.0 port is suitable for peripherals like a keyboard and mouse or additional storage devices.
Dimensions
Width/depth/height, (mm)
115x115x28
Weight, g
170
Hardware
Chipset
Amlogic S905Y4
Processor
Quad-core ARM Cortex-A35, 2,000 MHz
Performance
16 500 DMIPS
RAM
1 GB DDR3
Flash memory
4 GB eMMC
Software
Operating system
Linux 4.9
Middleware supported
Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
